Home > Products > Portable interactive whiteboard SS-20D

Product Specifications

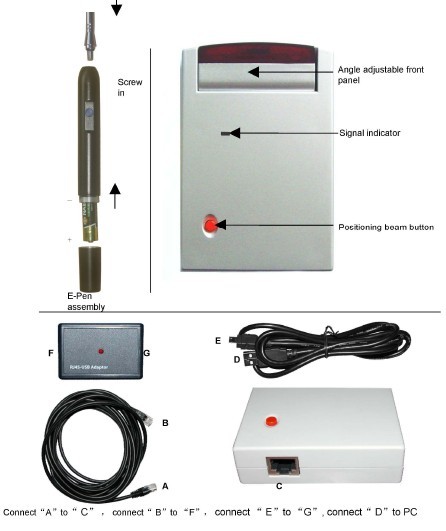

Signal Receiver

Optical Detection Technology

Infrared

Active Area (max projection size)

150 inch diagonal

Horizontal Reception Angle

38±2°

Adjustable Vertical Reception Angle

0-30°

Position Calibration Indication

Single laser beam indication

Active Distance (from projection to screen)

1.5 – 4.5 m

Communication Interface/Distance

USB toRJ45 (the effective distance up to 40 m)

Position Calibration Mode

Manual sampling, software calibration,
automatically position recover (when running again)

Resolution

5000×4000

Response Time

Less than 25ms(it depends on PCs)

Power Consumption

Less than 1W

Weight

210g

Dimension

12.5 x 8.5 x 2.5 (cm)

Pointer E-Pen

Light Emitted

Infrared

Control Buttons

1 button

Power Requirement

Battery AA x2

Working Current

40－50 MA

Pen Body Dimension

15.0 cm (length); 21.0 mm (diameter)

Pen Body Weight

55g (exclude battery)

Extendable Pointer Length

36 cm, extendable up to 65 cm

Extendable Pointer Weight

50g

System Requirements

OS Required

Microsoft Windows

2000/XP/Vista;MAC;Linux

CPU

1GHz or above

RAM Size

512 MB or above

Min. Hard Disk Space

100 MB or above

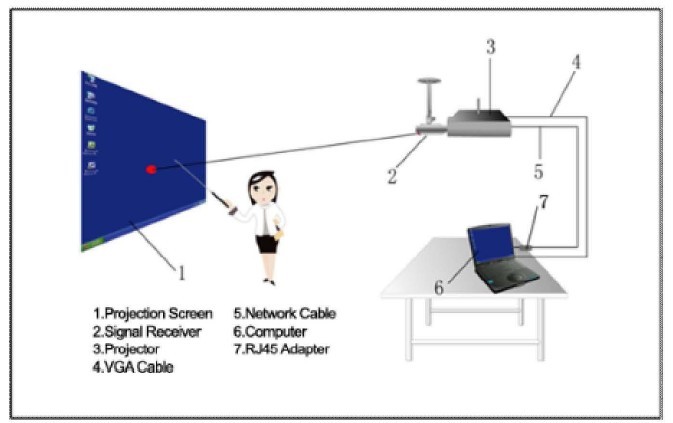

Recommended Signal Receiverdistance

Screen Size

Distance between Receiver and Screen

70”

2.0~2.5 m

100”

2.5~3.0 m

120”

3.0~3.5m

150”

4.0~4.5m
